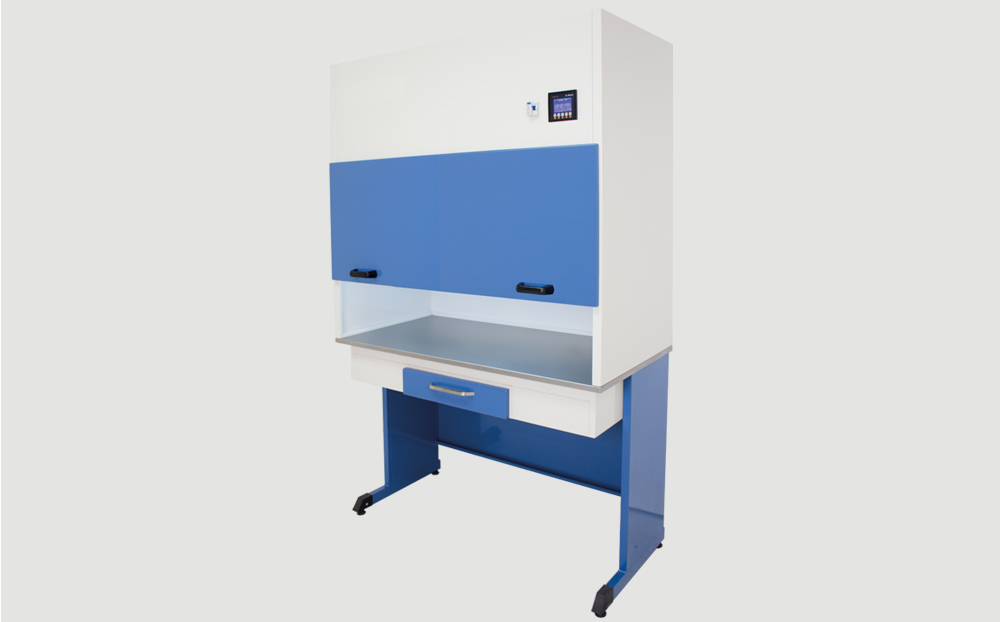

We are creating the perfect operating environment for your preheating furnaces. Thanks to the M-105 with an INOX “A304 Cr/Ni “ stainless steel worktop we are arranging the optimal working environment without any fume, smell or heat radiation. Due to the heat-resistant engine, all harmful gases are eliminated by subsequently blown out of your laboratory. By using the digital control panel an easy and user-friendly control of suction power, internal cabin lighting and weekly programming options are guaranteed. The M-105 offers three specific dimensions.
Technical Details:
- INOX “A304 Cr/Ni “ stainless steel working surface on 1,20mm strong main body.
- Phosphate coated base before further powder paint coating.
- The internal cabin wiring is grounded, with 3x1,5mm2 diameter SIHO-S5 (-60 °C / + 250 ° C) cable and heat resistant.
- Suitable sockets within the cabin.
- Internal Lighting System
- Suction Capacity: 1580m3/h
- The cabin is operated via the digital screen on the front panel by which a full control and observation of all essential functions such as weekly programming, internal lighting, suction power, are possible.

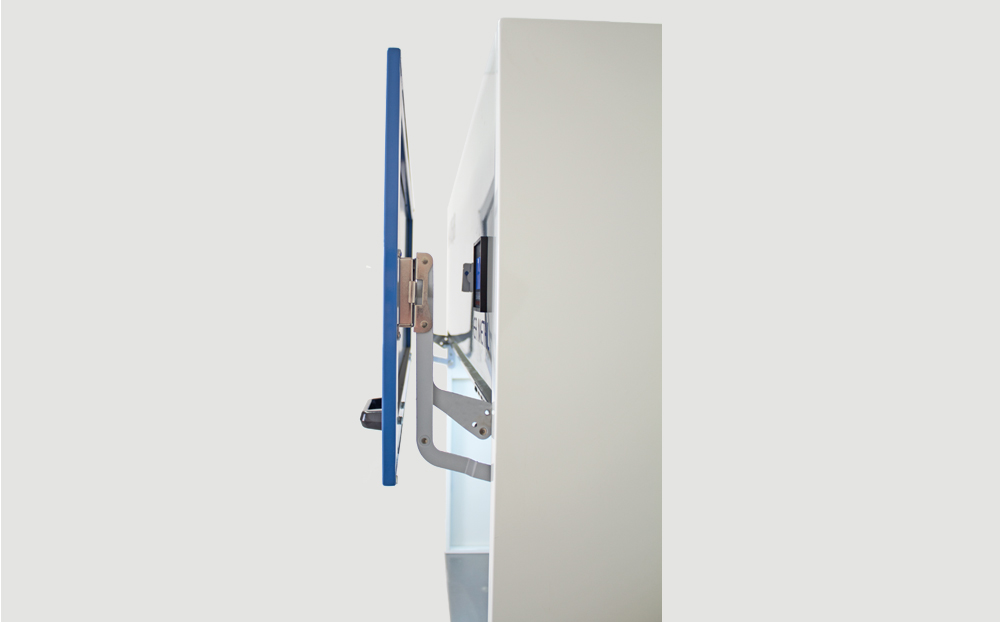

- Parallel lift-up metal lid.
- Choose between an open stand or a complete storage cabinet system on the
- lower half.
- 220/230V 50-60Hz.
Dimensions:
- M-105/A: 65 x 80 x 211cm (h)
- M-105/B: 65 x 120 x 211cm (h)
- M-105/C: 65 x 160 x 211cm (h)
